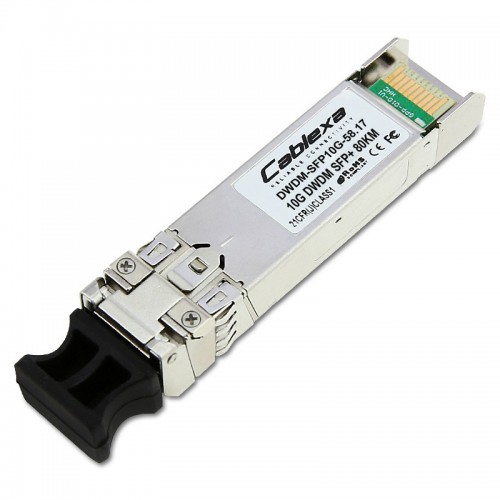

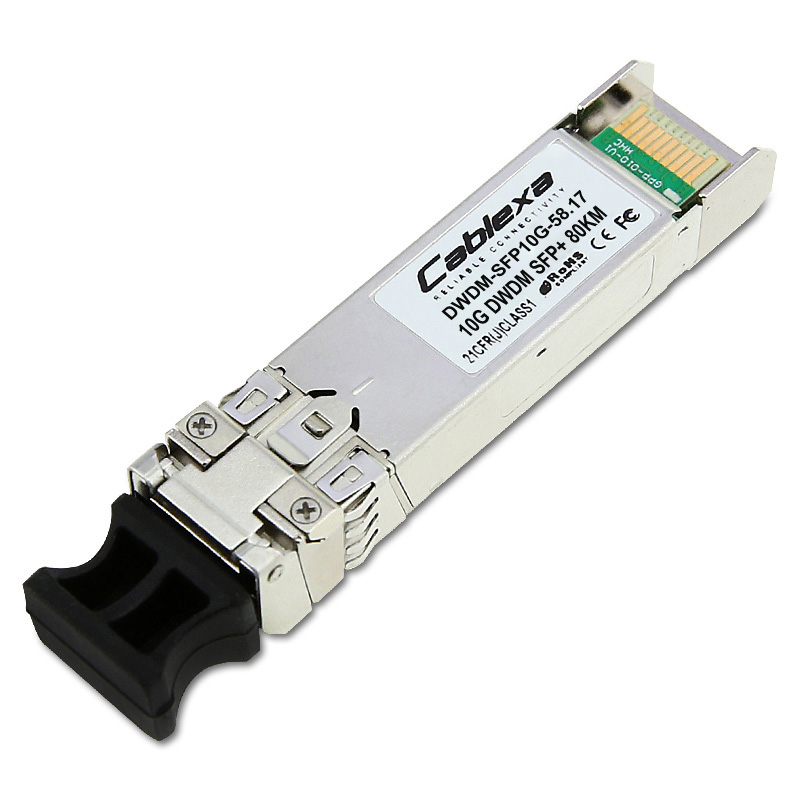

Cisco Compatible DWDM-SFP10G-58.17 10GBASE-DWDM SFP+ 1558.17nm 80km

Manufacturer: Cablexa
Part Number: DWDM-SFP10G-58.17
Availability: In Stock
Ships: Usually in 2 days
Price: $950.00

Qty



Product Overview

The Cisco 10GBASE DWDM SFP+ Modules are fiber line cards for a wide variety of Cisco switches, routers, and other equipment. They allow enterprises and service providers to provide scalable and easy-to-deploy 10-Gbps LAN, WAN, and optical transport network (OTN) services in their networks.

Features and Benefits
The Cisco 10GBASE Dense Wavelength-Division Multiplexing SFP+ Module offer the following features and benefits:

  • upports 10-Gigabit data rates from 9.9G to 11.1G (LAN, WAN, and OTU2/OTU2e) to accommodate different applications
  • Smallest SFP+ module footprint in the industry
  • Hot-swappable input/output device plugs into an Ethernet SFP+ port of a Cisco switch or router to link the port with the network
  • Support for a “pay-as-you-grow” model for investment protection
  • Digital optical monitoring capability for enhanced diagnostics and troubleshooting
  • DWDM fixed module supports 40 non-tunable ITU 100-GHz wavelengths
  • DWDM tunable module supports 96 tunable ITU 50-GHz wavelengths
  • Supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an SFP+ module certified and tested by Cisco

Platform Support

The Cisco DWDM SFP+ modules are supported across a variety of Cisco switches, routers, and optical transport devices. For more details, refer to the Cisco 10-Gigabit transceivers compatibility matrix at http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6974.pdf.

Connectors and Cabling

  • Equipment: standard SFP+ interface
  • Network: dual LC/PC connector

Specifications

  • Part Number: DWDM-SFP10G-58.17
  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10.5 Gb/s
  • Distance (max): 80KM
  • Transmitter: EML
  • Receiver: APD
  • Digital Diagnostic: Yes
  • Connector: Duplex LC
  • Cable Type: SMF
  • Wavelength: 1558.17nm
  • Operating Temperature: 0 to 70°C (32 to 158°F)

Labelling

  • Cablexa Logo (Default)
  • Generic Label
  • Custom Label

This DWDM-SFP10G-58.17 is marked and labelled with Cablexa brand as default. Customized labelling and branding are available as request.

Warranty

Cablexa offers 5-year limited warranty on this DWDM-SFP10G-58.17 optical transceiver module.

Quality Guarantee

Cablexa offers a large selection of optical transceivers that are compatible with all the major brands. We also carry transceivers in various form factors to meet your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. All of Cablexa's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

This Cisco Compatible DWDM-SFP10G-58.17 10GBASE-DWDM SFP+ 1558.17nm 80km is 100% MSA compliant. It is guaranteed compatible with your router or switch. And it comes with a 5-year warranty and lifetime technical support. If you have any questions about this DWDM-SFP10G-58.17 transceiver module or any other item, feel free to contact us.
