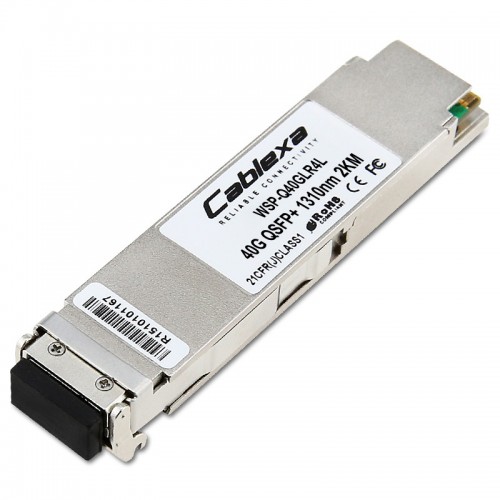

Cisco Compatible WSP-Q40GLR4L 40GBASE-LR4L QSFP Module for SMF

Manufacturer: Cablexa
Part Number: WSP-Q40GLR4L
Availability: In Stock
Ships: Usually in 2 days
Price: $1,250.00

Qty



Product Overview
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

Features and Benefits

  • Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
  • Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
  • Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
  • High-speed electrical interface compliant to the IEEE 802.3ba standard
  • QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Cisco WSP-Q40GLR4L (QSFP-LR4-Lite)

The Cisco WSP-Q40GLR4L QSFP module supports link lengths of up to 2 kilometers over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2 kilometers. The operating temperature range is from +10 to +60°C with an optical link budget of 4 decibels. This 4-decibel link budget offers the ability to support the loss from patch panels in the link in a data center environment.

Specifications

  • Part Number: WSP-Q40GLR4L
  • Product Type: Transceiver Module
  • Form Factor: QSFP+
  • Data Rate (max): 41.2Gb/s
  • Distance (max): 2KM
  • Transmitter: CWDM DFB
  • Receiver: PIN
  • Digital Diagnostic: Yes
  • Connector: Duplex LC
  • Cable Type: SMF
  • Wavelength: 1310nm Band
  • Operating Temperature: 0 to 70°C (32 to 158°F)

Labelling

  • Cablexa Logo (Default)
  • Generic Label
  • Custom Label

This WSP-Q40GLR4L is marked and labelled with Cablexa brand as default. Customized labelling and branding are available as request.

Warranty

Cablexa offers 5-year limited warranty on this WSP-Q40GLR4L optical transceiver module.

Quality Guarantee

Cablexa offers a large selection of optical transceivers that are compatible with all the major brands. We also carry transceivers in various form factors to meet your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. All of Cablexa's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

This Cisco Compatible WSP-Q40GLR4L 40GBASE-LR4L QSFP Module for SMF is 100% MSA compliant. It is guaranteed compatible with your router or switch. And it comes with a 5-year warranty and lifetime technical support. If you have any questions about this WSP-Q40GLR4L transceiver module or any other item, feel free to contact us.
