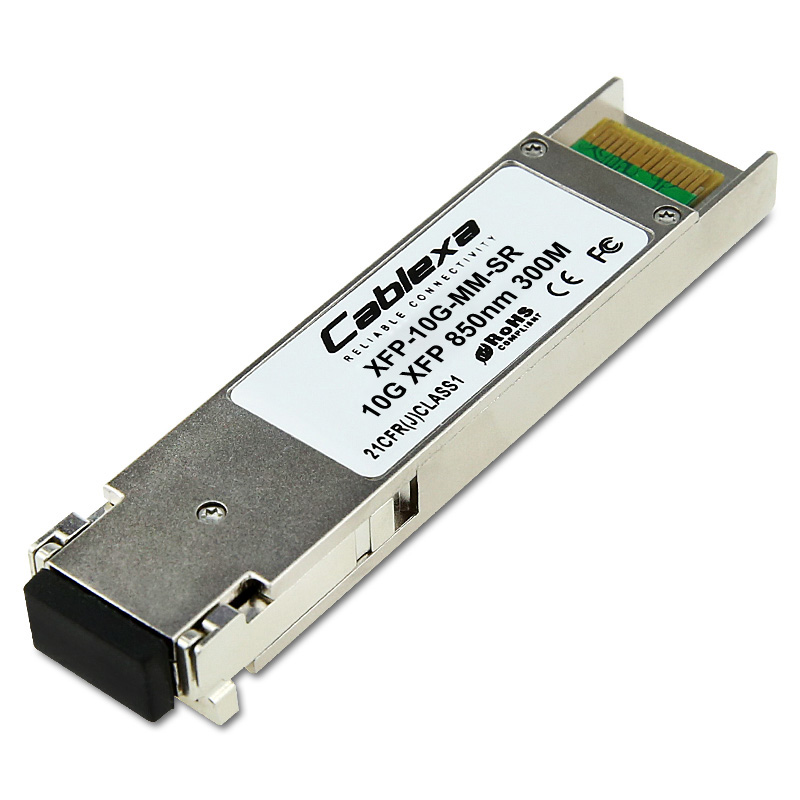

Cisco Compatible XFP-10G-MM-SR 10GBASE-SR Ethernet XFP transceiver module for MMF, 850-nm wavelength, 300m, dual LC connector
The Cisco® XFP Module offers customers a variety of 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Main features of the Cisco XFP Module include:
- Supports 10GBASE Ethernet and OC-192/STM-64 data rates
- Hot-swappable input/output device plugs into a XFP port of a Cisco Systems® router to link the port with the network
- Provides flexibility of interface choice
- Supports “pay-as-you-populate” model
- Supports the digital optical monitoring capability
- Supports the Cisco quality identification (ID) feature that helps enable a Cisco switch or router to identify whether the module is a Cisco certified and tested XFP
- Supports optical interoperability with respective Cisco 10GBASE XENPAK and X2, and SFP+ modules on the same link
Cisco 10GBASE-SR XFP module for MMF
The 10GBASE-SR XFP is dedicated to Ethernet applications only. It supports a link length of 26m on standard FDDI-grade MMF. Up to 300m link lengths are possible when using 2000 MHz/km MMF (OM3). Up to 400m link lengths are possible when using 4700MHz*km MMF (OM4).
Specifications
- Part Number: XFP-10G-MM-SR
- Product Type: Transceiver Module
- Form Factor: XFP
- Data Rate (max): 10.5 Gb/s
- Distance (max): 300M
- Transmitter: VCSEL
- Receiver: PIN
- Digital Diagnostic: Yes
- Connector: Duplex LC
- Cable Type: MMF
- Wavelength: 850nm
- Operating Temperature: 0 to 70°C (32 to 158°F)
Labelling
- Cablexa Logo (Default)
- Generic Label
- Custom Label
This XFP-10G-MM-SR is marked and labelled with Cablexa brand as default. Customized labelling and branding are available as request.
Warranty
Cablexa offers 5-year limited warranty on this XFP-10G-MM-SR optical transceiver module.
Quality Guarantee
Cablexa offers a large selection of optical transceivers that are compatible with all the major brands. We also carry transceivers in various form factors to meet your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. All of Cablexa's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
This Cisco Compatible XFP-10G-MM-SR 10GBASE-SR Ethernet XFP transceiver module for MMF, 850-nm wavelength, 300m, dual LC connector is 100% MSA compliant. It is guaranteed compatible with your router or switch. And it comes with a 5-year warranty and lifetime technical support. If you have any questions about this XFP-10G-MM-SR transceiver module or any other item, feel free to contact us.
