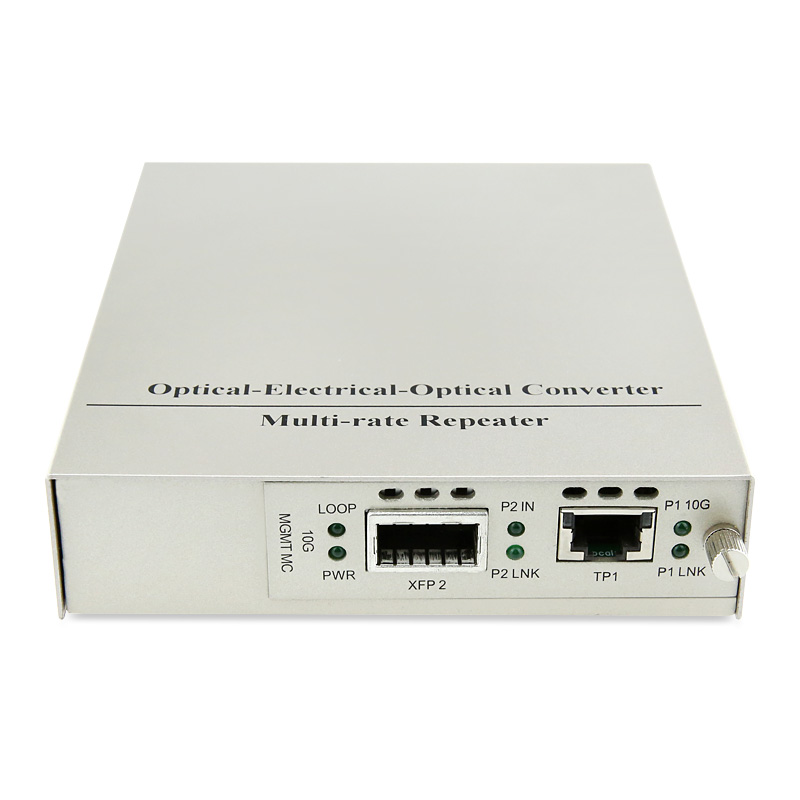

10G Ethernet Media Converter, XFP to RJ45
This is a high-performance 10G optical media converter , Using Optical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.
Features
- Support Jumbo Frame
- Support web management
- Transparent Transport and very low delay
- Uses a variety of 10G transceivers supplied by Cablexa, Cisco or other MSA compliant SFP+ and XFPs
- Support ITUT prescribed DWDM/CWDM wavelength
- Support Loopback test function
- Support hot plugging
- Full State Led display
- Supports auto MDI/MDIX function
- Status LED for easy monitoring of device status
- FCC Class A & CE approved
Specifications
Interface | 1 x Ethernet port (RJ45) 10GBase-Tx 1 x Optical port XFP |
Optical Port | Transfer Distance: up to 80km Connectors: XFP Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um on multi-mode fiber |
Ethernet Port | Available speed: force 10Gbps Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connectionauto-sensing |
Standard | IEEE802.3an(10Gbase-T) IEEE802.3ae(10Gbase-SR/LR/ER/ZR) |
Power Supply | AC 110V~260V |
Physical Characteristics | Housing: Metal enclosure Dimensions: 156 x 128 x 32mm Weight: 0.75kg |
Environmental Limits | Operating Temperature: 0°Cto 50°C Storage Temperature: -20°Cto 70°C Operating Humidity: 10% to 90% RH Storage Humidity: 5% to 90% RH |
Agency Approvals | FCC Part 15 of Class A & CE approved |
Applications
1. Convert one 10G Ethernet media to another
Convert your 10GBaseT copper link to multimode or single mode fiber. Ideal for large data centers and Co-Location applications where the distance required to connect top of rack switches exceeds the 100 meter limitation of 10G copper.
