The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices, as depicted in Figure 2. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. Note in Figure 2 the presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
Bidirectional Transmission of a Single Strand of SMF
The SFP-10G-BXD-I and SFP-10G-BXU-I SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

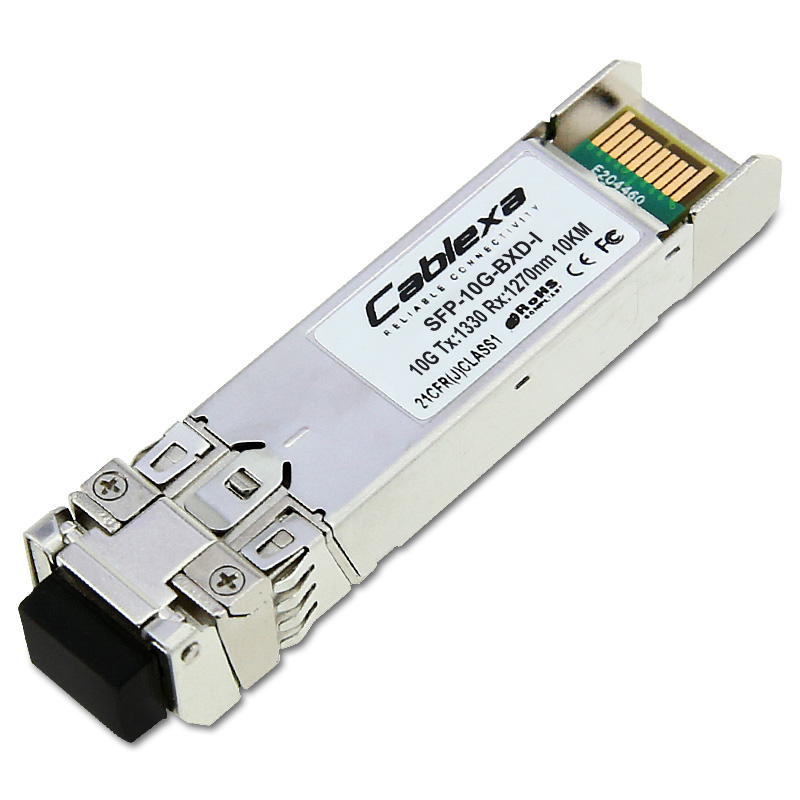

- Part Number: SFP-10G-BXD-I
- Product Type: Transceiver Module
- Form Factor: SFP+
- Data Rate (max): 10.5 Gb/s
- Distance (max): 10KM
- Transmitter: DFB
- Receiver: PIN
- Digital Diagnostic: Yes
- Connector: Simplex LC
- Cable Type: SMF
- Wavelength: Tx1330nm/Rx1270nm
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Cablexa Logo (Default)
- Generic Label
- Custom Label
This SFP-10G-BXD-I is marked and labelled with Cablexa brand as default. Customized labelling and branding are available as request.
Cablexa offers 5-year limited warranty on this SFP-10G-BXD-I optical transceiver module.
Cablexa offers a large selection of optical transceivers that are compatible with all the major brands. We also carry transceivers in various form factors to meet your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. All of Cablexa's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
This Cisco Compatible SFP-10G-BXD-I 10GBASE-BX10-D Bidirectional for 10km is 100% MSA compliant. It is guaranteed compatible with your router or switch. And it comes with a 5-year warranty and lifetime technical support. If you have any questions about this SFP-10G-BXD-I transceiver module or any other item, feel free to contact us.
