Specification
The ServeRAID M5015 and ServeRAID M5014 adapter cards have the following specifications:

• Eight internal 6 Gbps SAS/SATA ports
• Two Mini-SAS internal connectors (SFF-8087)
• 6 Gbps throughput per port
• 800 MHz PowerPC processor with LSI SAS2108 6 Gbps RAID on Chip (ROC) controller
• x8 PCI Express 2.0 host interface
• Onboard data cache (DDR2 running at 800 MHz):
• ServeRAID M5015: 512 MB
• ServeRAID M5014: 256 MB
• Intelligent Li-Ion-based battery backup unit with up to 48 hours of data retention:
• ServeRAID M5015: Standard in the option part number
• ServeRAID M5014: Optional
• Supports RAID levels 0, 1, 5, 10, and 50 (RAID 6 and 60 support with the optional M5000 Advanced Feature Key)
• Connects to up to 32 SAS or SATA drives
• SAS and SATA drives are supported, but the mixing of SAS and SATA in the same RAID array is not supported
• Supports up to 64 logical volumes
• Supports LUN sizes up to 64 TB
• Configurable stripe size up to 1 MB
• Compliant with Disk Data Format (DDF) configuration on disk (COD)
• S.M.A.R.T. support

Specifications

• Part Number: MegaRAID SAS 9260-8i
• Product Type: SAS/SATA Host Bus Adapter
• Brand: LSI (Genuinue LSI)
• Manuf Part#: LSI00198
• Condition: Brand New Sealed
• Warranty: One Year

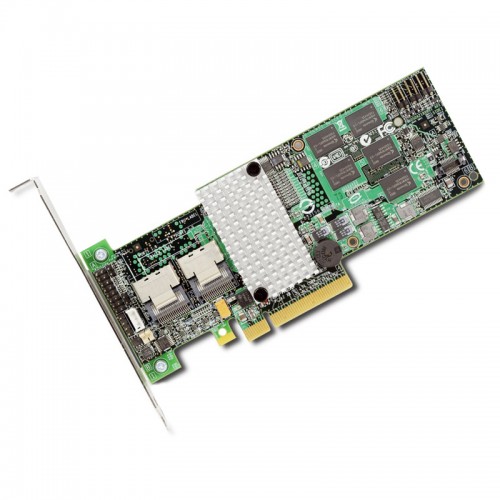

This LSI MegaRAID SAS 9260-8i Low-profile MD2 eight-port internal 6Gb/s PCIe SATA SAS RAID controller - MegaRAID SAS 9260-8i is new original LSI product. It is a brand-new, unused, unopened, undamaged item in its original packaging. We can ship it in 2 days by DHL after we get your order.

We are professional supplier for various types of new original connectivity products. If you are interested in products which are not shown in our online catalog, please let us know what you need!
